Engineered Precision for Pharmaceutical, Chemical & Food Processing
M/s SREE VENKATESWARA INDUSTRIES manufactures international-standard cGMP Process Equipment. Specializing in SS Chemical Reactors, Vacuum Tray Dryers, Shell & Tube Heat Exchangers, Multi-Mills, and heavy-duty Industrial Storage Tanks with custom linings.
5+ Years of Dedicated Engineering
Devaryamjal Industrial Zone, Hyd
Saddle & Skirt Custom Designs
Pressure, Vacuum & Hydro-Tested
Promoted by Qualified & Dedicated Process Engineers
M/s Sree Venkateswara Industries is a premier manufacturer and supplier of pharmaceutical, bulk drug, chemical, and food processing equipment located in the industrial development corridor of Shameerpet, Hyderabad.
Our aim is to provide world-class products by continually improving quality using innovative technology and unmatched international standards.
Advanced Industrial Engineering with Complete In-House Fabrication
Established in 2021 in Devaryamjal Village, Hyderabad, Sree Venkateswara Industries operates a high-precision 5,500 sq. feet workshop equipped with modern welding, rolling, grinding, polishing, and hydraulic testing setups.
Our team of specialized engineers, design architects, quality inspectors, and skilled technicians work together to produce industrial machinery compliant with stringent FDA / cGMP norms and ASME standards.
Custom Tailored Solutions
Design and fabrications according to client batch volumes, thermal loads, and material compatibility.
Rigorous Quality Testing
Full hydro-testing (up to 5 Kg/cm²), vacuum retention tests, dye penetrant, and surface grit mirror polish inspection.
Comprehensive Documentation
Supply of DQ, IQ, OQ qualification documentation, material test certificates (MTC), and FLP motor conformity.
Pharmaceutical & Bulk Drug Equipment
Browse our complete line of industrial equipment manufactured using high-grade stainless steel (SS316/SS304) and corrosion-proof specialty alloys.

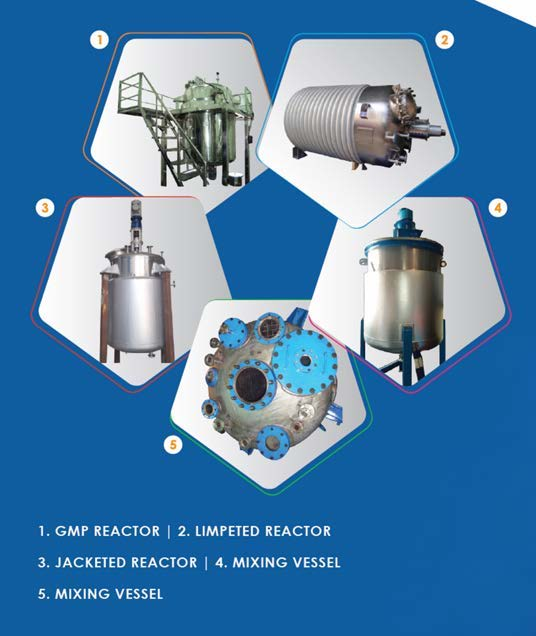

Chemical & Jacketed Reactors
Equipped with heavy-duty impellers, baffles to prevent vortexing, and external limpet coil or heating/cooling jackets using steam or thermic oil.
Vacuum Tray Dryer (VTD)
Ideal for thermal-sensitive materials easily resolved, polymerized, or deteriorated under high heat. Full vacuum tested with digital FLP temp control.
Hot Air Tray Dryer
Energy-efficient recirculation of hot air for drying powders, wet granules, and wet cake with moisture up to 30%. Explosion-proof doors with silicon gaskets.
Shell & Tube Heat Exchanger
High-efficiency heat transfer between high and low temperature fluids. Available in Fixed Tube Sheet and Floating Tube Sheet designs for pharma and datacenters.

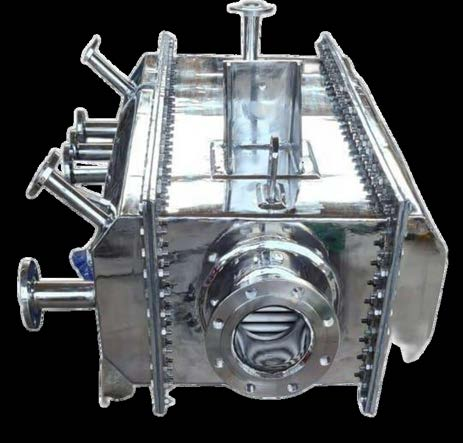

Box Type Condenser
Water-cooled shell & tube condenser designed to convert steam or vapor from gaseous to liquid state at sub-atmospheric pressure with low exhaust temperature.

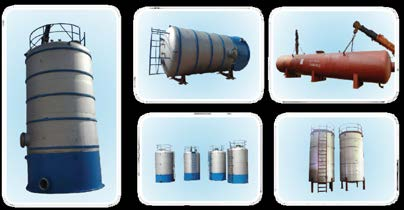

Industrial Storage Tanks
Horizontal saddle-mounted and vertical skirt/lug-supported tanks for chemicals, oils, solvents, and bulk drug formulations. Corrosion-resistant custom designs.
Multi Mill Granulator
High-speed granulating, pulverizing, mixing, and shredding machine. Utilizes 12 knife blades and 2 scraper blades with variable rotor speeds to prevent choking.
SS Receivers & Catch Pots
Anti-corrosive, leak-proof stainless steel receiver tanks designed for vapor condensing lines, distillate collection, and chemical batch sampling.
Nutsche Filters, Extractors & Cleanroom Doors
We engineer Nutsche Filters, Leaf Filters, IPC Bins, Fluid Bed Dryers (FBD), Roto-cone Vacuum Dryers (RCVD), GI/SS Cable Trays, and Flush Cleanroom Steel Doors.
Need Full Technical Diagrams & Dimensional Drawings?
Download our complete 15-page official catalog containing full equipment sizing, design temperatures, electrical configurations, and option lists.
Standard Model Specifications
Inspect exact manufacturing parameters, motor ratings, heating loads, and dimensional data for our flagship equipment lines.
| Model | Trays | Capacity (Kg) | Heating Shelves | Condenser (m²) | Receiver (L) | Dimensions (W x D x H mm) | Weight (Kg) |
|---|---|---|---|---|---|---|---|
| VTD 3G | 3 | 3 – 5 | 4 (430x430 mm) | 0.2 m² | 10 L | 900 x 900 x 1100 | 400 |
| VTD 6G | 6 | 12 – 18 | 7 (430x835 mm) | 0.5 m² | 25 L | 1250 x 1500 x 1850 | 700 |
| VTD 12G | 12 | 25 – 35 | 7 (835x835 mm) | 0.75 m² | 50 L | 1700 x 1500 x 1900 | 1,000 |
| VTD 24G | 24 | 50 – 75 | 13 (835x1250 mm) | 1.0 m² | 75 L | 1750 x 1500 x 2200 | 1,500 |
| VTD 36G | 36 | 75 – 100 | 13 (835x1250 mm) | 1.5 m² | 100 L | 1800 x 1900 x 2200 | 2,000 |
| VTD 48G | 48 | 100 – 150 | 17 (835x1250 mm) | 2.0 m² | 150 L | 1850 x 1900 x 2600 | 2,500 |
| Model | Blower Motor | Blower Fans | Heating Load (KW) | Max Temp | Trolley / Rack | Tray Size |
|---|---|---|---|---|---|---|
| T – 12 | 0.5 HP | 01 No. | 03 KW | 100° C | Built-in Rack | 16" x 32" x 1¼" |
| T – 24 | 0.5 HP | 01 No. | 06 KW | 100° C | Built-in Rack | 16" x 32" x 1¼" |
| T – 48 | 1.0 HP | 01 No. | 09 KW | 100° C | 01 Trolley | 16" x 32" x 1¼" |
| T – 96 | 1.0 HP x 2 Nos | 02 Nos. | 15 KW | 100° C | 02 Trolleys | 16" x 32" x 1¼" |
| Parameter | Specification Details (CGMP Model) |
|---|---|
| Throughput Capacity | 50 – 200 Kgs / Hr (Depends on screen aperture & feed properties) |
| Motor Power & Speed | 3.0 HP / 1440 RPM (3-Phase / 415 VAC / 50 Hz) |
| Variable Rotor Speeds | 4-Step Pulley: 720 / 1440 / 2160 / 2880 RPM |
| Beaters & Blades | 12 Knife Blades + 02 Scraper Blades (variable force swing hammers) |
| Charging & Discharging Heights | Charging: 1450 mm | Discharging: 730 mm |
| Surface Finishes | Contact Parts: 220 Grit Mirror Finish | Non-Contact: 150 Grit Mat Finish |
| Overall Machine Dimensions | 875 x 970 x 1650 mm Ht (Net Weight: ~280 Kg, Gross: ~430 Kg) |
| Optional Screens | Hole Size 0.5 mm to 12 mm | Wire Mesh 4# to 100 Mesh |
| Reactor Type | Design Features | Capacity Range | Available MOC |
|---|---|---|---|
| Limpeted Chemical Reactor | Half-pipe limpet coil welded around shell for fast heating/cooling with steam/thermic oil | 200 L to 30,000 L | SS316, SS316L, SS304, MS (IS2062) |
| Jacketed Chemical Reactor | Dimpled or plain outer jacket for uniform thermal distribution and low delta-T processing | 200 L to 30,000 L | SS316, SS316L, SS304, Hastelloy Lining |
| Mixing Vessel / Reaction Pot | Ambient pressure mixing, high-torque agitation, anti-vortex baffles, sanitary bottom flush valve | 200 L to 30,000 L | SS304, SS316, PTFE / FRP / Rubber lined |
| cGMP Pharma Reactor | Electro-polished interior (0.3 µm Ra / 320 grit), zero dead-leg nozzles, CIP/SIP spray ball ports | 500 L to 20,000 L | SS316L Contact / SS304 Non-Contact |
Certified Metallurgy & Surface Treatments
We fabricate process vessels from prime certified mill plates to ensure chemical resistance, zero product contamination, and compliance with pharmaceutical purity requirements.
Stainless Steel 316L / 316
The standard of choice for API contact parts, aggressive acids, chlorides, and sterile sanitary bio-reactors. Resists pitting and crevice corrosion.
- Mirror polish up to 320 Grit (Ra < 0.4 µm)
- Full Mill Test Certificate (MTC 3.1)
- Ideal for GMP Pharma & Bulk Drugs
Stainless Steel 304 / 304L
Highly durable, cost-effective stainless alloy for non-contact claddings, receiver tanks, secondary cooling lines, and cleanroom cabinetry.
- 180 to 220 Grit Mat & Satin Finish
- Excellent thermal & tensile stability
- Food & Beverage Grade certified
MS IS2062 & SA516 Gr.70
High-tensile boiler quality plates for high-volume storage tanks, steam jackets, support saddles, and structural frames.
- Hydro-tested to high ASME pressures
- Precision ultrasonic flaw inspection
- External anti-corrosive epoxy primer
Protective Linings & Coatings
Specialty coatings for highly reactive media, strong halogen acids, corrosive solvents, and abrasive slurries.
- PTFE, PFA, PP, Halar (ECTFE)
- FRP (Fiber Reinforced Polymer)
- Hard / Soft Chemical Grade Rubber Lining
5,500 Sq. Ft Dedicated Industrial Workshop & Warehouse
Situated in the well-developed industrial zone of Devaryamjal Village, Shameerpet Mandal, Medchal Malkajgiri District, Hyderabad, our modern plant is equipped for medium to heavy fabrication of complex pressure equipment.
Dedicated In-House Fabrication Bays
Segregated clean bays for Stainless Steel fabrication to eliminate cross-contamination from carbon steel particles.
TIG / MIG Precision Welding & Rolling
Qualified GTAW / GMAW certified welders and heavy plate bending rollers accommodating shells up to 150,000 Liters.
Comprehensive Testing Bay
Dedicated hydro-test rig (up to 5+ Kg/cm²), vacuum leak test manifold, digital surface roughness tester, and FLP electrical testing bench.
Why Leading Pharma & Chemical Plants Trust SVI
From initial CAD engineering design to final hydro-testing and commissioning, we deliver machinery built for continuous, zero-leak industrial operation.
Complete cGMP & FDA Compliance
All contact surfaces mirror-polished with smooth weld grinding and zero stagnant pockets to ensure CIP/SIP sanitation.
FLP Electricals & Safety Latches
Equipped with Flameproof (FLP) certified motors, digital controllers, rupture discs, and spring-loaded explosion proof door latches.
High Thermal Efficiency
Engineered axial flow fans, optimized limpet coil geometry, and insulated jacket claddings provide maximum heat transfer with minimal energy loss.
Experienced Engineering Team
Promoted by qualified engineers with deep domain expertise in pharmaceutical batch processing, fluid dynamics, and vessel metallurgy.
Complete Qualification Dossier
Full documentation supplied with every machine: DQ, IQ, OQ protocols, Hydro-test reports, MTC, and calibration certificates.
Rapid Turnaround & On-Site Support
Fast delivery cycles, spare parts availability (gaskets, screens, blades), and prompt on-site erection & commissioning assistance across India.
